Maxx ECU mini
MTune Software Download - Try it!https://www.maxxecu.com/
Not sure if this ECU is the one you need? Email us at Tech@pmrracing.shop with questions.

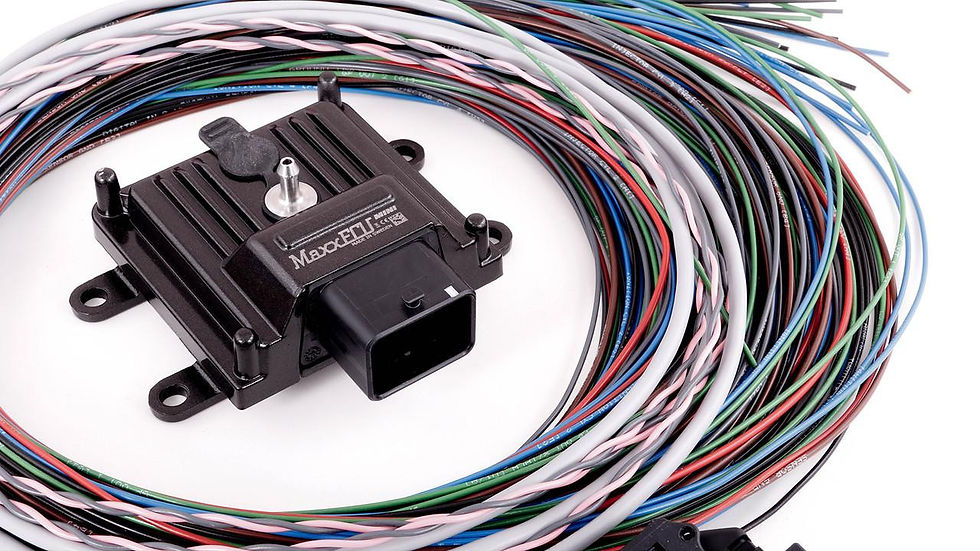

Need a custom wiring harness?
Introducing MaxxECU MINI – a compact powerhouse designed to elevate the performance of your engine with precision and efficiency. Tailored for a diverse range of vehicles, this advanced engine management system redefines control for 1-4, 6, and 8 cylinder engines.
Versatile Engine Compatibility:
Ideal for all 1-4, 6, and 8 cylinder engines, offering flexibility for various vehicle configurations.
Achieve sequential control for up to 4 cylinders (using a digital input as HOME) or embrace the efficiency of wasted spark for up to 8 cylinders.
Smart Inputs for Precision Control:
Essential sensors include Intake Air Temperature, Coolant Temperature, and Throttle Position.
1 trigger input (VR/HALL) with automatic trigger level detection ensures seamless integration.
2 digital inputs for versatile applications like speed sensors (Hall) or switches.
2 extra 0-5V inputs for additional sensors, such as fuel/oil pressure measurements.
Built-in 400kPa MAP-sensor for optimal boost control up to 3bar/43PSI.
Powerful Outputs for Total Command:
4 injector outputs designed exclusively for high impedance injectors.
4 ignition outputs providing a 5V signal to drive ignition modules, CDI units, or coils.
4 outputs for extra features, granting control over components such as fuel pumps, idle management, boost solenoids, nitrous, shift lights, fans, warning lights, and more (GPO 1-3 (2A), GPO 8 (2A)).
Advanced Technical Specifications:
CAN bus compatibility facilitates expansion modules, OEM vehicle CAN, and OBDII for enhanced functionality.
USB communication ensures seamless tuning with MTune.
8MB memory for internal logging at up to 1000Hz, capturing every detail of your engine's performance.
Wide supply voltage range from 8-22V for versatile application.
ARM Cortex-M3 120MHz main processor ensures rapid and precise control.
High-resolution settings with 0.1-degree accuracy on ignition and 0.001 ms on injectors.
Fuel and ignition calculations updated an impressive 2000 times per second for real-time accuracy.
The fastest PC communication on the market for swift data transfer.
Compact, Lightweight, and Durable:
Compact dimensions of 85x120x43mm (excluding protruding connectors) ensure easy integration.
Weighing a mere 245g (ECU only), MaxxECU MINI is designed for minimal weight impact.
Housed in a waterproofed aluminum case, guaranteeing durability and reliability in various conditions.
Upgrade your vehicle with MaxxECU MINI – where compact design meets uncompromised performance. Unleash the full potential of your engine and transform every drive into an exhilarating experience.
Target engines for MaxxECU MINI
All 1-4, 6 and 8 cylinder engines
Up to 4 cylinders fully sequentially (using a digital input as HOME)
Up to 8 cylinders in wasted spark
MaxxECU MINI inputs
Intake air temperature sensor (IAT)
Coolant temperature sensor (CLT)
Throttle position sensor (TPS)
1 trigger input (VR/HALL). Automatic trigger level detection
2 digital inputs used for example for speed sensors (Hall) or switches
2 extra 0-5V inputs. Can be used for additional sensors such as for measurement of fuel/oil pressure
Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost
MaxxECU MINI outputs
4 injectors outputs. High impedance only
4 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
4 outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1-3 (2A), GPO 8 (2A)
MaxxECU MINI technical
CAN bus for expansion modules, OEM vehicle CAN, OBDII
USB communication for tuning with MTune
8MB memory for internal logging, up to 1000Hz
Supply voltage 8-22V
ARM Cortex-M3 120MHz main processor
Resolution on ignition: 0.1 degrees
Resolution on injectors: 0.001 ms
Updates the fuel and ignition calculations 2000 times per second
The fastest PC communication on the market
85x120x43mm excluding protruding connectors
Weight: 245g (ECU only)
Waterproofed aluminium case

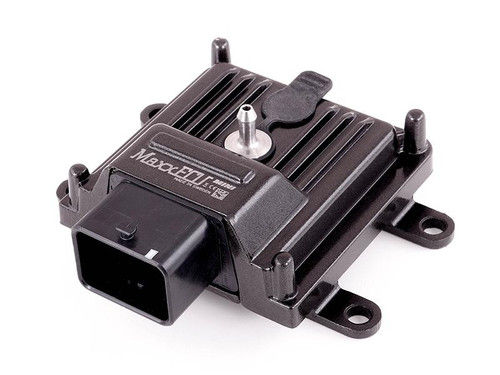

MaxxECU Mini Engine Control Unit
